C-1
Radial Off-the-road Tyre
Consinuction BIAS

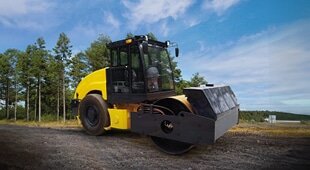

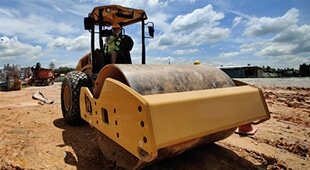

Service Compactor Service
Rubber compound used provides good resistance tooily chemicals such as coal tar.
Smooth tread which assures specific pressure distribution,ideal for guaranteeing maximum compacting of materials.
| Size | Ply rating | TRA code | Rim | Section width (mm) | Overall diamter (mm) | Tread depth (mm) | 10km/h | Type | |
| Load capacity（kg） | Inflation pressure（kPa） | ||||||||
| 7.50-16 | 14 | C-1 | 6.00G | 215 | 810 | - | 2390 | 700 | TT |
| 9.00-20 | 14 | C-1 | 7.0 | 255 | 1015 | - | 4375 | 725 | TT |
